Upgraded Billet GT28 GT2871 GT2860 T25 Turbo A/R 0.64 0.6 Compressor Turbine

Name: Upgraded Billet GT28 GT2871 GT2860 T25 Turbo A/R 0.64 0.6 Compressor Turbine
SKU: 4248425d-05ca-4d75-9553-64c215269636

$230.35

Quantity

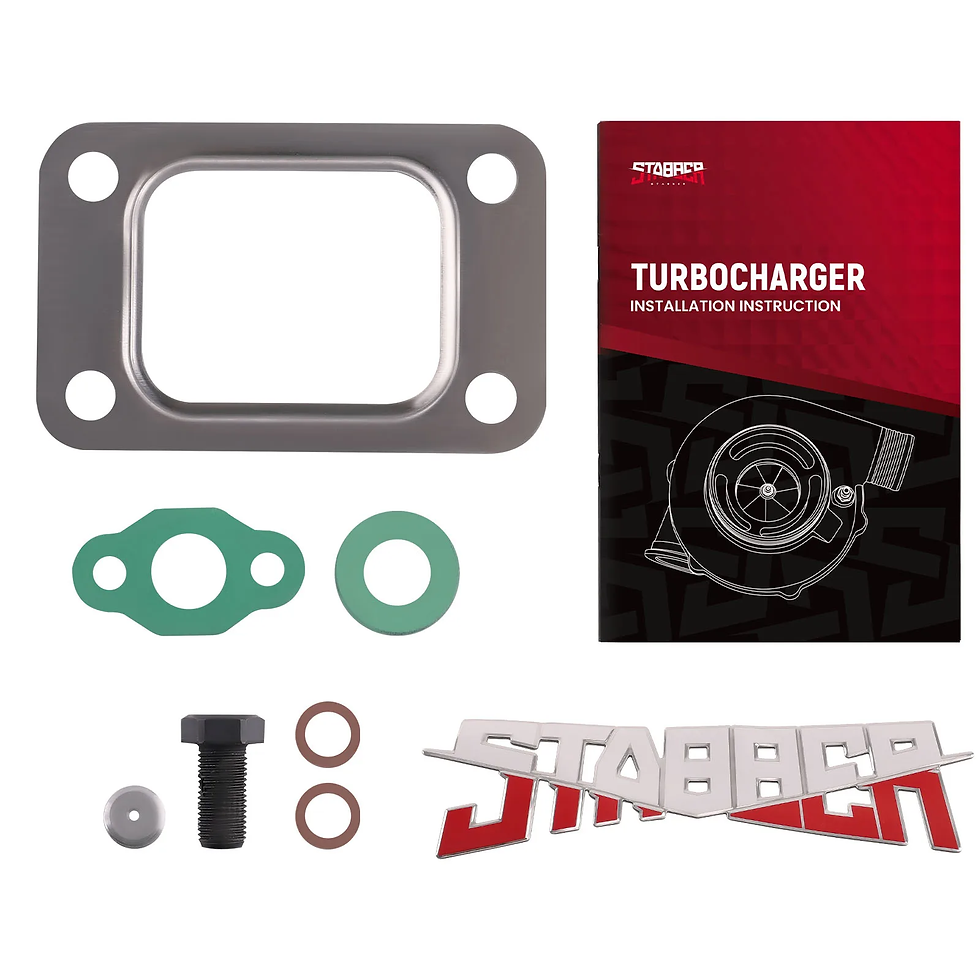

Legal Note: Not For Sale or Use in California, or New York.(for all vehicles registered in these states)Application Universal for Turbo Manifold with T25 Flange(T28 Flange can be converted to T25 Flange, Adapter is needed). Perfect for all 1.5L-2.0L engine, for all 4 cylinder Horse Power: Boost Horse Power up to 350BHP Specification Exhaust Inlet (Turbo Manifold) Flange: Standard T25 Flange Exhaust Outlet Flange: 5-Bolt Turbine Trim: 76 Turbine A/R: 0.64 Turbine Inducer Diameter: 53.8mm Turbine Exducer Diameter: 47mm Compressor Trim: 48 Compressor A/R: 0.60 Compressor Inducer Diameter: 49.2mm Compressor Exducer Diameter: 71 mm Bearing Type: Wet Float Cooling Type: Water + Oil Wastegate: with Wastegate Oil Restrictor: Yes Oil Restrictor Size: inside diameter 2mm Oil Feed Size: 12mm Oil Inlet: M12*1.25 Oil Drain Size: 14mm Oil Outlet: M14 & 2*M8*1.25 Oil Drain Thread Pitch: 40mm Water Thread Size: M14*1.5 Horse Power: Boost Horse Power up to 350BHP Accessories: You will get exactly as shown as picture above Features 1. Silicon-Molybdenum Turbine Housing Engineered for high-temperature resistance up to 850℃, highly stable and ductile, resistant to corrosion and cracking, enhancing both durability and reliability. 2. K419 Alloy Turbine Wheel Capable of withstanding high-temperatures up to 1000℃, efficiently converting engine exhaust gases into kinetic energy while resisting thermal breakdown for smooth and reliable operation. 3. Flank Milled Billet Compressor Wheels Precision CNC machined from forged billet aluminum, providing high efficiency, fast response, lower fuel consumption, and smooth operation. Package included 1x Turbocharger 2x Oil Gaskets 2x Washers 1x Flange Gasket 1x Restrictor 1x Oil Inlet Bolt 1x Manual 1x Sticker Notice * Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage. * Make sure the oil drain line is lower than the turbo itself. * Gasoline car must install a water cooling device to avoid overheating. * Ensure exhaust outlet are well sealed by welding * The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended. * This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order. * Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!

Wayland does contract with some warehouses outside the States, expected shipping time, 5 to 10 business days.
Orders are processed within 2–3 business days after cleared payment. (Monday–Friday, excluding federal holidays). Delivery estimates shown at checkout (such as “10–15 business days”) are provided by the carrier and are not guaranteed. Weather, carrier delays, and high-volume periods may affect delivery timelines.
Please note: All manufacturer names, symbols, and descriptions, used in our images & text are used solely for identification purposes only. It is neither inferred nor implied that any item sold by
Waylandinc.com, is a product authorized by or in any way connected with any vehicle manufacturers displayed on these products.

Professional Installation Required: This product requires specialized knowledge and tools for proper setup. We strongly recommend hiring a licensed, certified professional to perform the installation. Waylandinc.com is not liable for any product damage, property damage, personal injury, or voided warranties resulting from improper, self-performed, or unauthorized installation.
